EXTENDER KIT 4K 30HZ-40M | 60HZ-70M 1080P | SPF-REX2.1

SKU: HSPFREX21

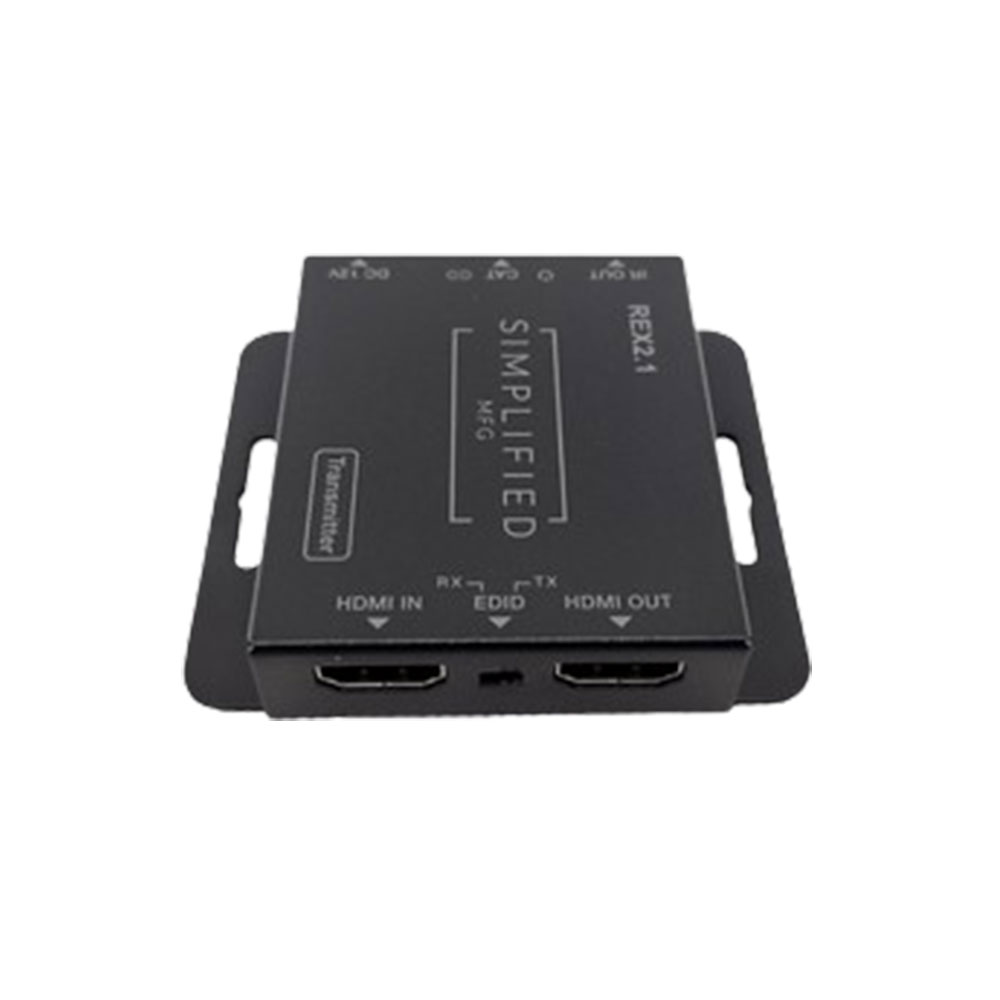

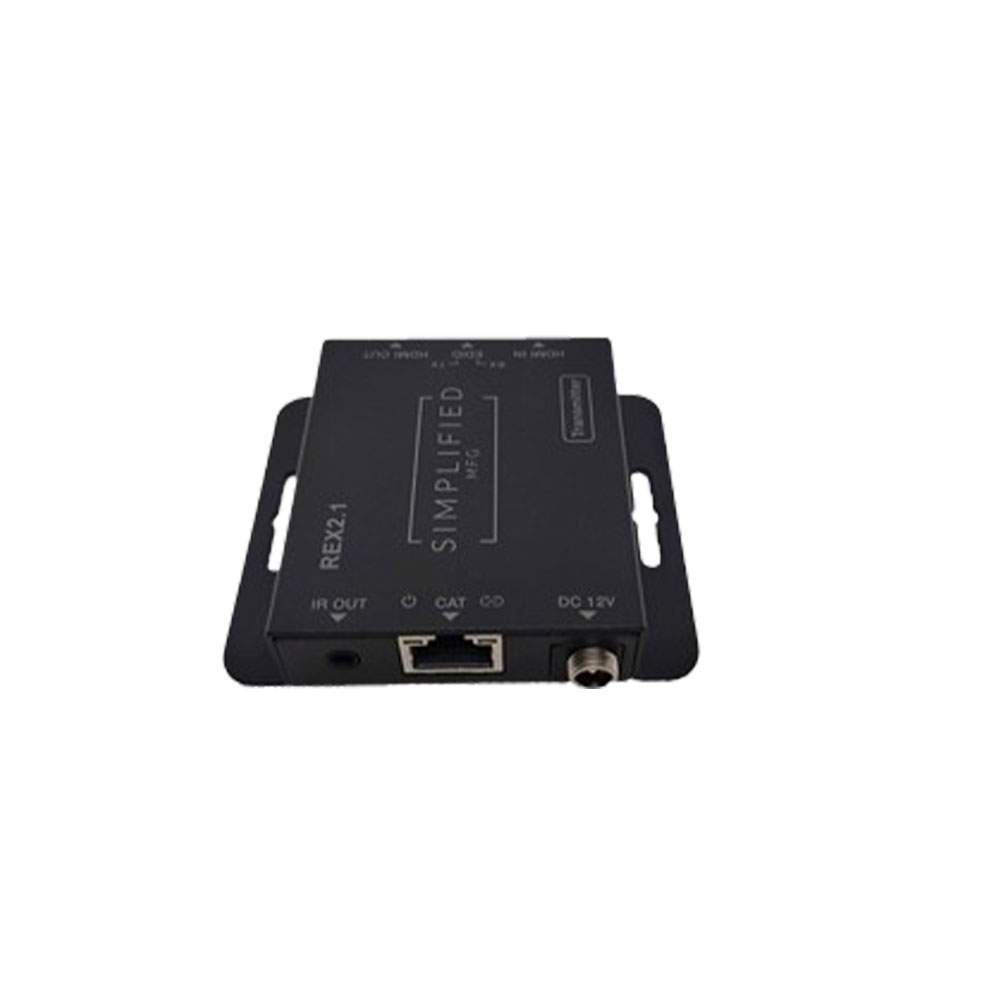

Transmitter
Single power supply (TX)
Supports 4K at 24/25/30Hz. (HDCP 1.4 Only)
Allows for cascading via additional HDMI loop out port.
Supports copy EDID from receiver display or loop out display.
Compact design for an easy and flexible installation.
Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 cable.
Transmission Range: Extends 1080p resolution up to 164ft/50m over a single Cat5e or Cat6 cable.

Original price:
~~$ 125.84~~
Online price:
$ 100.20
(incl BTW $ 110.22)

Low Stock

Note: To pay with Creditcard or iDeal, message us at 7262000

Low Stock

Add to compare

11 People watching this product now!

Payment Methods:

Description

EXTENDER KIT 4K 30HZ-40M | 60HZ-70M 1080P

REX2.1

The REX2.1 is a compact 4K (24/25/30Hz.)/1080p (60Hz.) HDMI Extender kit over single Cat cable (50m/70m) 4K and 1080p respectively.

The REX2.1 is a HDMI/ HDCP 1.4 Extender over Single Cat5e/6 with IR extends high definition Audio/Video signals and IR, at a distance of up to 230ft/70m at 1080p and164ft/50m at 4K (24/25/30Hz., HDCP 1.4 Only) over a single Cat5e/6 cable. The REX2 is small, and robust. The 10.2Gbps capability makes it a very reliable and powerful 1080p extender with the added benefit of supporting some 4K signals. In addition, the extender is also equipped with IR pass-through which allows for source control.

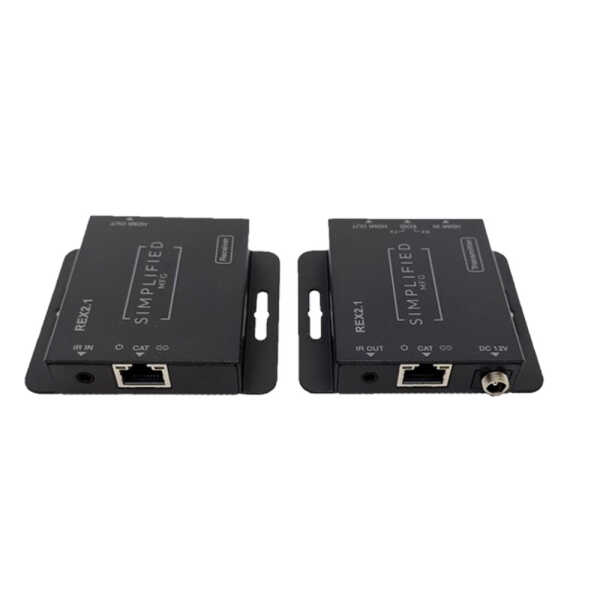

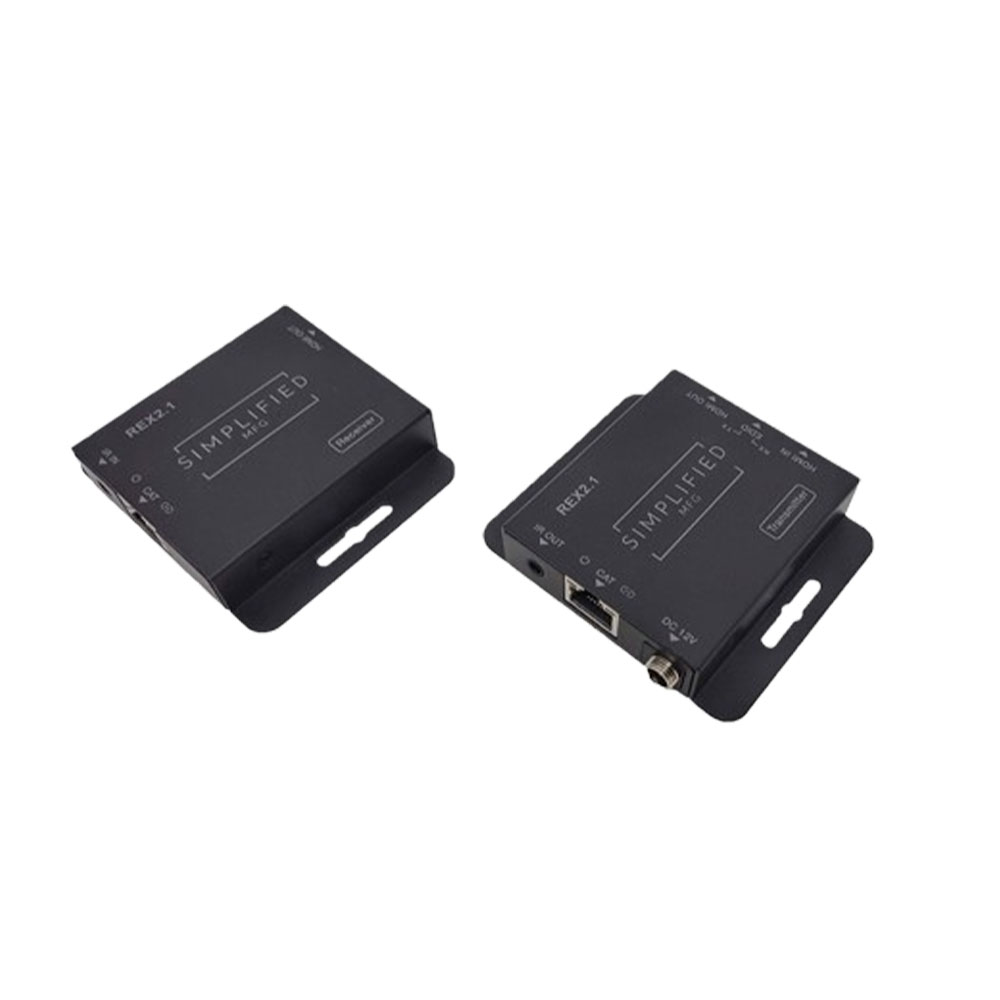

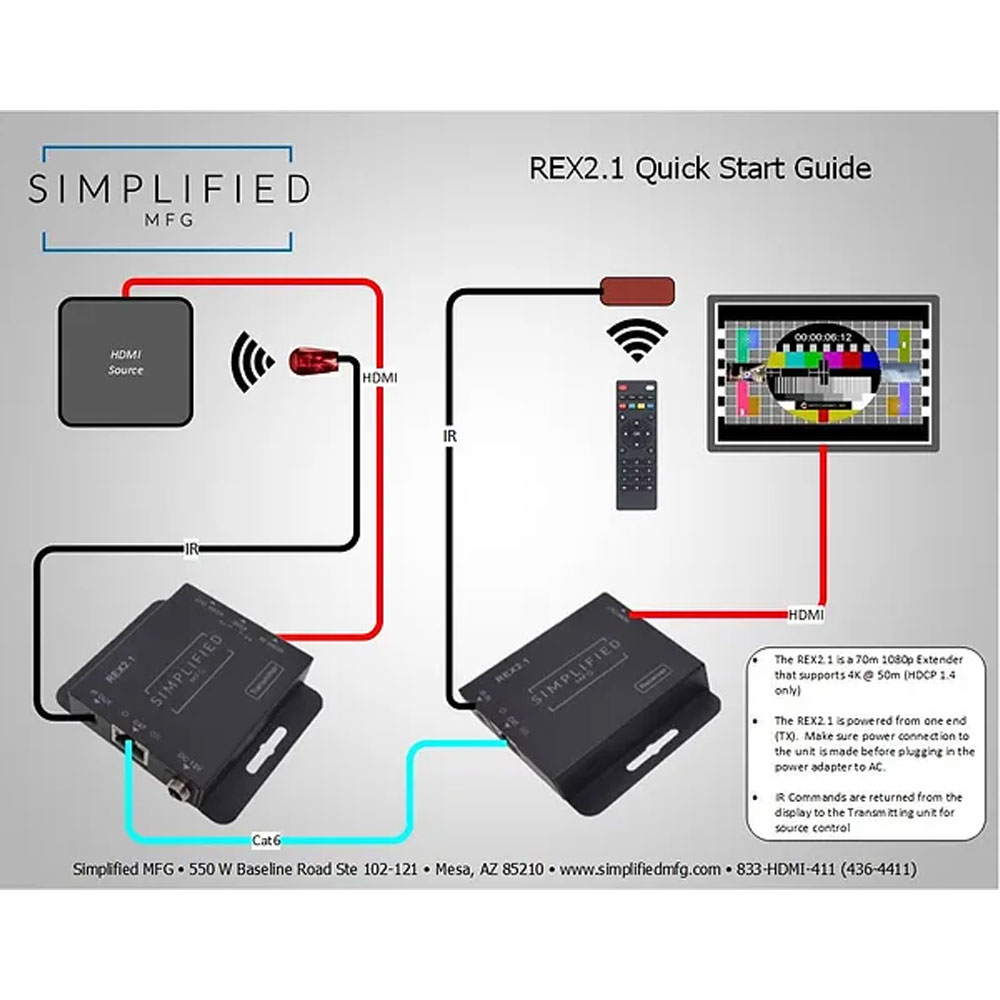

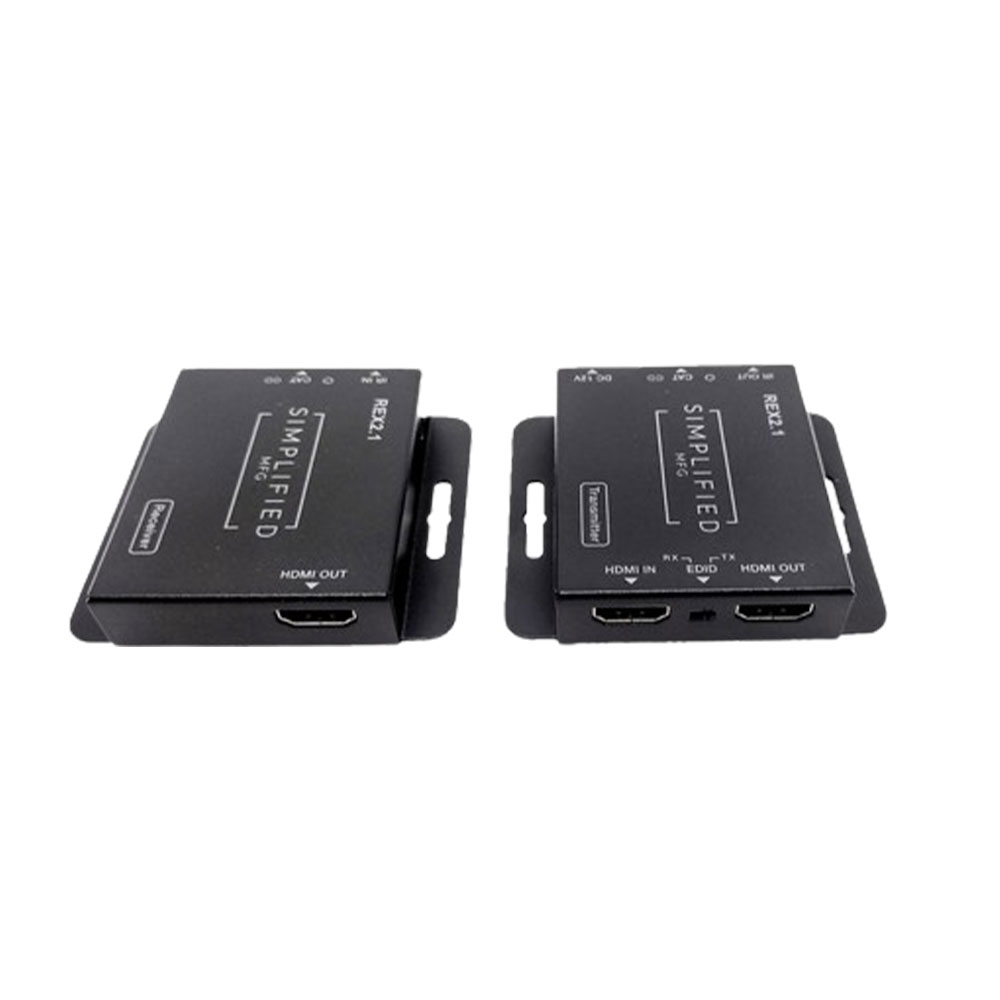

The REX2.1 extender includes two units: a transmitting unit and a receiving unit. The transmitting unit is used to capture the HDMI input with IR carries the signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for decoding the transmitted HDMI signal. The extender cost effective HDMI extension over a single Cat5e/6 with long distance capability, and is the perfect solution for Set top boxes at 1080p (70m) and some 4K sources (50m) with HDCP1.4 such as live performance and/or security cameras.

CLICK HERE FOR MORE!

Product Specifications

Technical
Video Bandwidth	10.2Gbps
Video Support	480i/480p/720p/1080i/1080p @60/4K 24/25/30Hz.
Audio Support	Surround Sound (up to 7.1 ch) or stereo digital audio
Transmission Range	4K 30Hz. – up to 50m [164ft] 1080p up to 70m (230ft.)
Input TMDS Signal	3.3 volts
Input DDC Signal	5.0 volts/P-P
ESD Protection: Human Body Model	+/- 8 kV (air-gap discharge)
	+/- 4 kV (contact discharge)
HDMI Connector	Type A 19 pin female
RJ-45 Connector	WE/SS 8P8C
3.5mm Connector	(TX and RX) IR Receiver/IR Blaster

Mechanical
Housing	Metal enclosure
Dimensions	60mm/2.375" [W] x 60mm/2.375" [D] x 17mm/0.67" [H]
Weight	90g/3.175 oz.
Power Supply	(1) 5V1A DC
Power Consumption	1.5 watts (TX); 1.0 watts (RX)
Operation Temperature	32~104 °F
Storage Temperature	-4 ~140 °F
Relative Humidity	20~90 % RH (no condensation)
