PRESSURE SWITCH FOR HYDROPHORES | 9013FSG2J24M1

SKU: H9013FSG2J24M1

Pressure Switch
Operation Mode: Electric
Brand: Square O
Switch Type: Pressure Switch
Material: HAWA
Item Dimensions: (LxWxH) 10 x 6.5 x 6.5 CM
Temp. Range: -22 Degrees to 257 Degrees F
Color: Grey

Original price:
~~SRD 221.54~~
Online price:
SRD 178.60
(incl BTW SRD 196.46)

Temporarily Out of Stock

For USD/EURO payments: SRD Sale price ÷ 34/35.50
Note: To pay with Creditcard or iDeal, message us at 7262000

Temporarily Out of Stock

Add to compare

Add to wishlist

15 People watching this product now!

Payment Methods:

Description

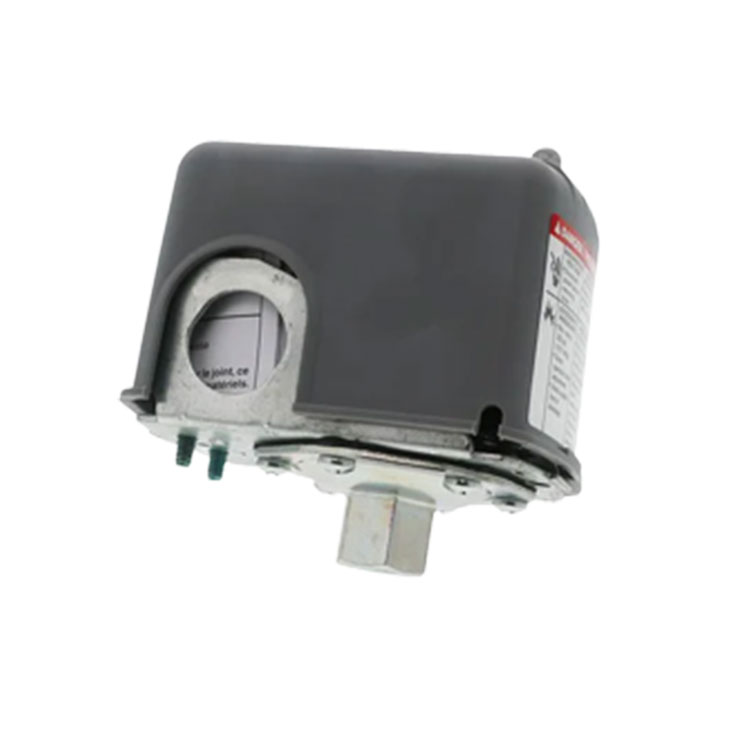

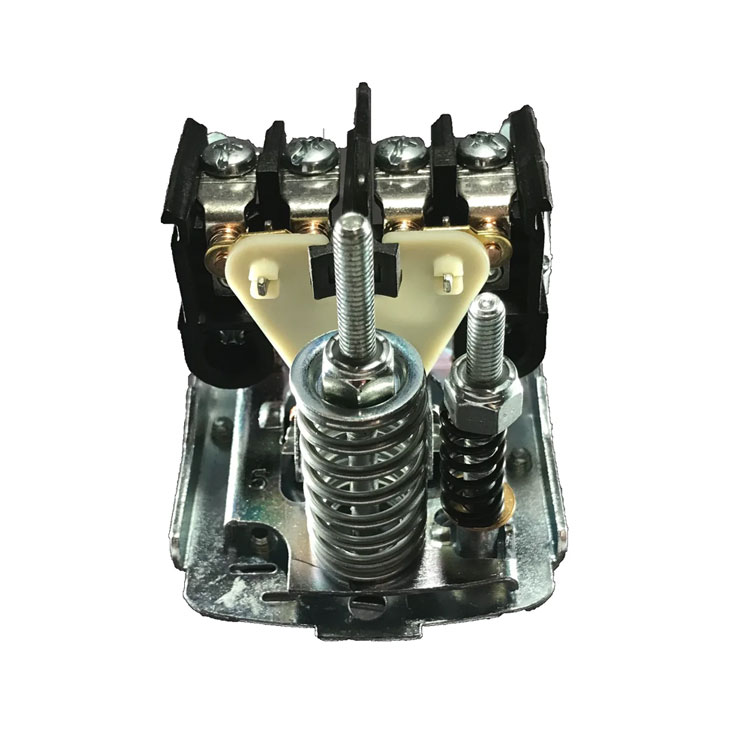

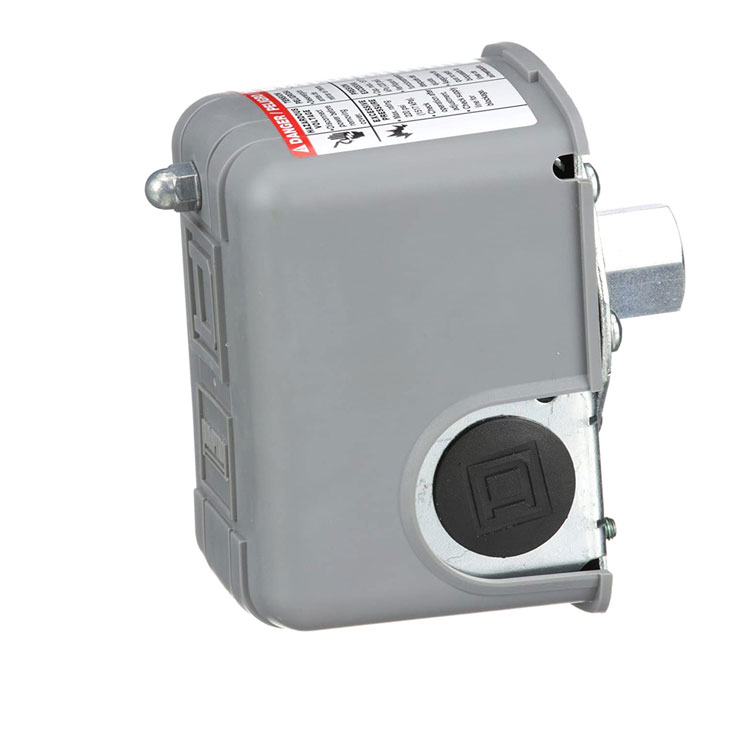

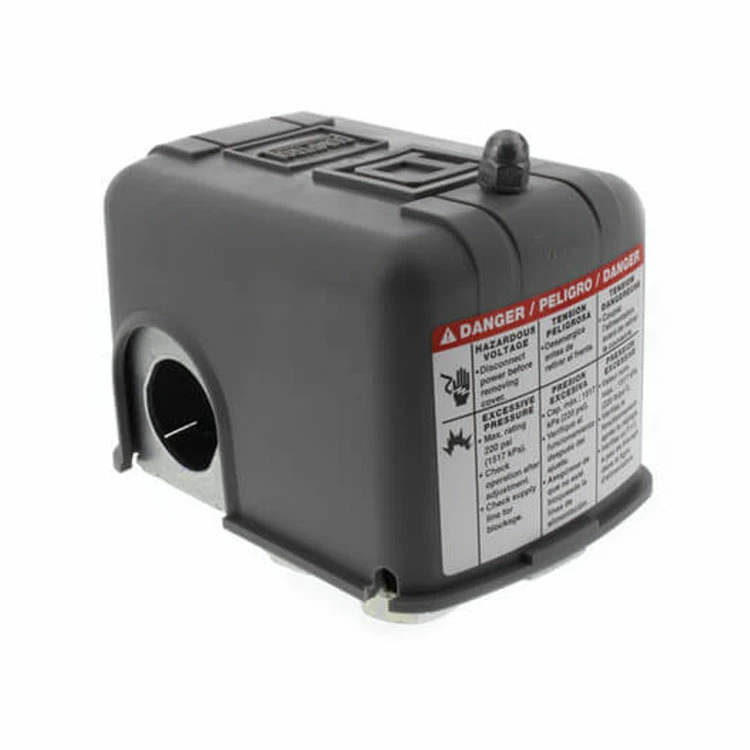

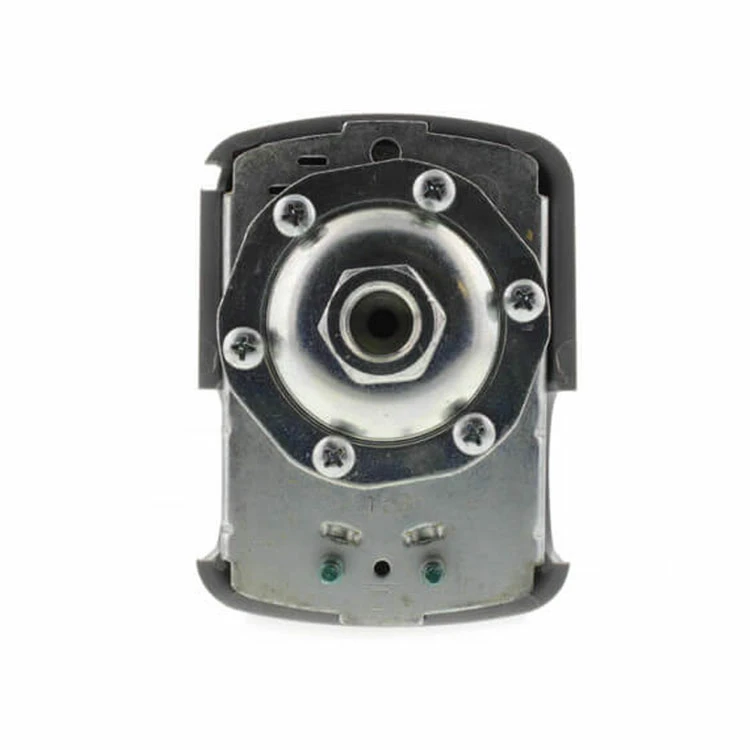

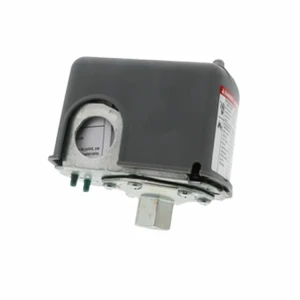

PRESSURE SWITCH FOR HYDROPHORES

This electromechanical pressure switch with 40-60 psi pressure setting range activates an electrically driven water pump within a power circuit when the adjustable rising and falling thresholds are reached.

The NEMA 1 enclosure has a 1/4″ NPSF internal fluid connection and screw clamp terminals.
Switch works with a 1.5 hp or less pump.
Contains adjustable differential range is 15-30 psi and the cut-out range is 20-65 psi.
it’s enclosure is National Electrical Manufacturers Association (NEMA) Type 1 and Ingress Protection (IP) 20 rated.
The switch is Underwriters Laboratory (UL) Listed and Canadian Standards Association (CSA) Certified.
Square D Pumptrol pressure switches are manufactured by Schneider Electric.

DID YOU KNOW WE HAVE MORE TOOLS? CLICK HERE TO SEE THEM!

Product Specifications

Brand Names	Square O
Color	Grey
Connector Type	Clamp
Ean	0736313561517
Item Weight	0.32 kg
Part Number	9013FSG2J24
Power Source Type	Corded Electric
Specification Met	CSA , UL
Switch Type	Pressure Switch
Terminal Type	DPST
Dimensions (LxWxH)	22.86 x 12.7 x 10.16 cm
Horsepower Rating	(3-Phase) 2HP@115VAC – 3HP@230VAC – 1HP@460/575VAC (1-Phase) 1.5HP@115VAC – 2HP@230VAC
